最近调研了一下ELK，自己也尝试搭建了一套环境，用于学习， 现将整个部署的过程记录下来
现 Filebeat 已经完全替代了 Logstash-Forwarder 成为新一代的日志采集器，越来越多人开始使用它，所以现在基于 Filebeat ELK 架构如下图
看完了图，再来简单介绍一下ELK
E lasticsearch ：简称 ES，是ELK的核心，是基于Apache Lucene的开源数据搜索引擎，可以实时快速的搜索和分析，性能强悍
L ogstash ：一个具有实时传输能力的数据收集引擎，用来数据收集、分析、过滤日志的工具，支持多类型日志
K ibana ：为Elasticsearch提供了分析和可视化的Web平台 ，可以生成各种维度的表格，图形， Kibana 还可以用于问题分析，可以很快的将异常事件或者事件范围缩小到秒级或者个位数，从TB级别的数据中搜到关键的错误信息
Filebeat : 一个轻量级日志采集器， 早期的 ELK 架构中使用 Logstash 收集、解析日志，但是 Logstash 对内存、cpu、io 等资源消耗比较高， 相比 Logstash，Filebeat 所占系统的 CPU 和内存几乎可以忽略不计
Kafka：一种高吞吐量的分布式发布订阅消息系统， 如果日志量巨大，还需要引入Kafka用以均衡网络传输，降低网络闭塞， 保证数据不丢失，还可以系统之间解耦，具有更好的灵活性和扩展性
版本：
Filebeat：7.8.1
LogStash：7.8.1
Kibana：7.8.1
Elasticsearch：7.8.1
Kafka：2.2.2 - 2.12
Java：11在选择对应版本的时候需要注意，ES 7.8.1需要Java 11
Filebeat与Kafka对应版本的选择，官网也有说明，建议Kafka版本在 0.11 和 2.2.2 之间，所以选用了Kafka 2.2.2
Filebea t
1.解压
2.Filebeat配置起来很简单，修改filebeat.yml配置文件如下
定义Filebeat的输入：为目标日志
定义Filebeat的输出：为kakfa，指定topic
# ============================== Filebeat inputs ===============================
filebeat.inputs:
# Each - is an input. Most options can be set at the input level, so
# you can use different inputs for various configurations.
# Below are the input specific configurations.
- type: log
# Change to true to enable this input configuration.
enabled: true
# Paths that should be crawled and fetched. Glob based paths.
paths:
- /yw/log/*.log
# ------------------------------ Logstash Output -------------------------------
output.kafka:
enable: true
hosts: ["localhost:9092"]
topic: "test"2.启动Filebeat，需要指定配置文件，即刚才配置好的filebeat.yml
nohup ./filebeat -c filebeat.yml &Kafka
1.解压
2.修改配置文件 server.properties，修改如下配置
listeners=PLAINTEXT://localhost:90923.如果你没有zookeeper，则可以使用kakfa自带的zookeeper，配置zookeeper
# the directory where the snapshot is stored.
dataDir=/tmp/zookeeper
# the port at which the clients will connect
clientPort=2181
# disable the per-ip limit on the number of connections since this is a non-production config
maxClientCnxns=04.启动zookeeper
cd bin
nohup ./zookeeper-server-start.sh ../config/zookeeper.properties &查看进程是否正确启动
[root@localhost bin]# jps
9139 QuorumPeerMain5.启动Kafka
nohup ./kafka-server-start.sh ../config/server.properties &查看进程是否正确启动
[root@localhost bin]# jps
9139 QuorumPeerMain
9683 Kafka6.查看 topic，在我们配置 Filebeat 的时候定义了topic，当 Kafka 启动后，就会创建 topic
[root@localhost bin]# ./kafka-topics.sh --list --bootstrap-server localhost:9092
test[root@localhost bin]# ./kafka-topics.sh --describe --bootstrap-server localhost:9092 --topic test
Topic:test PartitionCount:1 ReplicationFactor:1 Configs:segment.bytes=1073741824
Topic: test Partition: 0 Leader: 0 Replicas: 0 Isr: 0LogStash
1.解压
2.修改配置文件 config/logstash.yml
node.name: localhost3.在使用Logstash时，可根据需求创建自己的配置文件
定义 input ：Logstash 去接 Filebeat 发送到 Kafka 的数据，配置 Kafka 相关的信息，指定 topic，并指明类型为 json
定义 output : 需要向 ES 中存储，指定ES的地址，并创建索引： test – 年份.月份 ，配置文件如下
注意，需要保证格式的正确，要不然 LogStash会抛出异常
[root@localhost config]# cat test.conf
input {
kafka {
bootstrap_servers => ["localhost:9092"]
group_id => "test"
topics => ["test"]
consumer_threads => 1
codec => json {
charset => "UTF-8"
}
}
}
output {
elasticsearch {
hosts => ["localhost:9200"]
index => "test-%{+YYYY.MM}"
}
}3. 启动 Logstash，需要指定我们自定义的配置文件
cd ../bin/
nohup ./logstash -f ../config/test.conf &查看进程是否启动
[root@localhost bin]# jps
9139 QuorumPeerMain
9683 Kafka
3619 LogstashElasticsearch
1.解压
2.创建 elasticsearch 用户（root用户不能启动 elasticsearch ）
useradd elasticsearch3.修改文件拥有用户
chown -R elasticsearch elasticsearch/切换用户
su - elasticsearch4.修改配置文件，config/elasticsearch.yml
http.port: 92005.修改Jvm配置文件 jvm.options，资源有限，需要限定一下堆的大小
-Xms256m
-Xmx512m6.启动 Elasticsearch
[root@localhost bin]# cd bin
[root@localhost bin]# ./elasticsearch查看进程是否启动
[2020-07-29T21:54:17,410][INFO ][o.e.h.AbstractHttpServerTransport] [localhost.localdomain] publish_address {127.0.0.1:9200}, bound_addresses {[::1]:9200}, {127.0.0.1:9200}
[2020-07-29T21:54:17,411][INFO ][o.e.n.Node ] [localhost.localdomain] started[root@localhost bin]# jps
3619 Logstash
2516 Kafka
2955 QuorumPeerMain
3725 Elasticsearch
3262 Kafka7.测试es是否好用
[root@localhost bin]# curl localhost:9200
{
"name" : "localhost.localdomain",
"cluster_name" : "elasticsearch",
"cluster_uuid" : "2dcAImNFTli_lGTHJYx7_A",
"version" : {
"number" : "7.8.1",
"build_flavor" : "default",
"build_type" : "tar",
"build_hash" : "b5ca9c58fb664ca8bf9e4057fc229b3396bf3a89",
"build_date" : "2020-07-21T16:40:44.668009Z",
"build_snapshot" : false,
"lucene_version" : "8.5.1",
"minimum_wire_compatibility_version" : "6.8.0",
"minimum_index_compatibility_version" : "6.0.0-beta1"
},
"tagline" : "You Know, for Search"
}Kibana
1.解压
2.创建 kibana 用户
useradd kibana3. 修改文件拥有用户
chown -R kibana kibana/切换用户
su - kibana4.修改配置文件 kibana.yml
elasticsearch.hosts: ["http://localhost:9200"]5.启动 kibana
[root@localhost kibana]# cd bin/
[root@localhost bin]# ./kibana查看是否启动成功，相关信息如下
[01:55:38.282] [info][listening] Server running at http://localhost:5601
[01:55:39.117] [info][server][Kibana][http] http server running at http://localhost:5601所有组件都启动成功后，打开浏览器输入 localhost:5601 ，查看kibana
接下来就是见证奇迹的时刻，网页成功打开

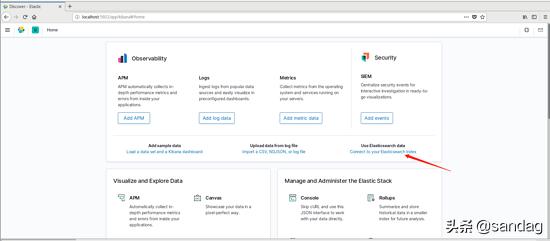

然后连接自己的ES

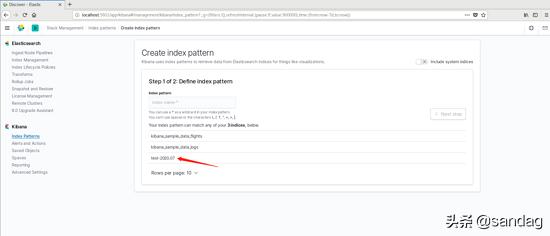

下一步后，找到Logstash中设置好的索引
接下来，就是验证整个流程了
让监控的日志中产生一些数据
[2020-07-29 22:12:49,689] INFO [GroupMetadataManager brokerId=0] Removed 0 expired offsets in 37 milliseconds. (kafka.coordinator.group.GroupMetadataManager)
[2020-07-29 22:22:49,645] INFO [GroupMetadataManager brokerId=0] Removed 0 expired offsets in 0 milliseconds. (kafka.coordinator.group.GroupMetadataManager)
[2020-07-29 22:32:49,646] INFO [GroupMetadataManager brokerId=0] Removed 0 expired offsets in 1 milliseconds. (kafka.coordinator.group.GroupMetadataManager)
[2020-07-29 22:42:49,646] INFO [GroupMetadataManager brokerId=0] Removed 0 expired offsets in 1 milliseconds. (kafka.coordinator.group.GroupMetadataManager)在 Kafka 中消费一下，是否有消息发送到 topic 上
./kafka-console-consumer.sh --topic test --bootstrap-server localhost:9092
{"@timestamp":"2020-07-30T02:43:17.329Z","@metadata":{"beat":"filebeat","type":"_doc","version":"7.8.1"},"ecs":{"version":"1.5.0"},"host":{"ip":["10.46.2.112","fe80::2959:f9cc:2a94:6ddc","192.168.122.1"],"mac":["00:0c:29:4e:57:2e","52:54:00:56:ed:eb","52:54:00:56:ed:eb"],"name":"localhost.localdomain","hostname":"localhost.localdomain","architecture":"x86_64","os":{"family":"redhat","name":"CentOS Linux","kernel":"3.10.0-1062.el7.x86_64","codename":"Core","platform":"centos","version":"7 (Core)"},"id":"17946cedccdd442b845d0cfa8693cc71","containerized":false},"agent":{"version":"7.8.1","hostname":"localhost.localdomain","ephemeral_id":"3a381097-c3fe-4339-b92b-fff537b9a9f2","id":"401bee7f-115f-447d-a1e5-a6b6c57e21a1","name":"localhost.localdomain","type":"filebeat"},"message":"[2020-07-29 22:04:48,914] INFO [GroupCoordinator 0]: Assignment received from leader for group console-consumer-98001 for generation 1 (kafka.coordinator.group.GroupCoordinator)","log":{"offset":668,"file":{"path":"/yw/log/1.log"}},"input":{"type":"log"}}
{"@timestamp":"2020-07-30T02:43:17.330Z","@metadata":{"beat":"filebeat","type":"_doc","version":"7.8.1"},"log":{"offset":846,"file":{"path":"/yw/log/1.log"}},"message":"[2020-07-29 22:12:49,689] INFO [GroupMetadataManager brokerId=0] Removed 0 expired offsets in 37 milliseconds. (kafka.coordinator.group.GroupMetadataManager)","input":{"type":"log"},"host":{"architecture":"x86_64","os":{"version":"7 (Core)","family":"redhat","name":"CentOS Linux","kernel":"3.10.0-1062.el7.x86_64","codename":"Core","platform":"centos"},"id":"17946cedccdd442b845d0cfa8693cc71","containerized":false,"ip":["10.46.2.112","fe80::2959:f9cc:2a94:6ddc","192.168.122.1"],"mac":["00:0c:29:4e:57:2e","52:54:00:56:ed:eb","52:54:00:56:ed:eb"],"name":"localhost.localdomain","hostname":"localhost.localdomain"},"agent":{"id":"401bee7f-115f-447d-a1e5-a6b6c57e21a1","name":"localhost.localdomain","type":"filebeat","version":"7.8.1","hostname":"localhost.localdomain","ephemeral_id":"3a381097-c3fe-4339-b92b-fff537b9a9f2"},"ecs":{"version":"1.5.0"}}
{"@timestamp":"2020-07-30T02:43:17.330Z","@metadata":{"beat":"filebeat","type":"_doc","version":"7.8.1"},"host":{"architecture":"x86_64","name":"localhost.localdomain","os":{"family":"redhat","name":"CentOS Linux","kernel":"3.10.0-1062.el7.x86_64","codename":"Core","platform":"centos","version":"7 (Core)"},"id":"17946cedccdd442b845d0cfa8693cc71","containerized":false,"ip":["10.46.2.112","fe80::2959:f9cc:2a94:6ddc","192.168.122.1"],"mac":["00:0c:29:4e:57:2e","52:54:00:56:ed:eb","52:54:00:56:ed:eb"],"hostname":"localhost.localdomain"},"message":"[2020-07-29 22:22:49,645] INFO [GroupMetadataManager brokerId=0] Removed 0 expired offsets in 0 milliseconds. (kafka.coordinator.group.GroupMetadataManager)","log":{"offset":1004,"file":{"path":"/yw/log/1.log"}},"input":{"type":"log"},"agent":{"id":"401bee7f-115f-447d-a1e5-a6b6c57e21a1","name":"localhost.localdomain","type":"filebeat","version":"7.8.1","hostname":"localhost.localdomain","ephemeral_id":"3a381097-c3fe-4339-b92b-fff537b9a9f2"},"ecs":{"version":"1.5.0"}}
{"@timestamp":"2020-07-30T02:43:17.330Z","@metadata":{"beat":"filebeat","type":"_doc","version":"7.8.1"},"host":{"containerized":false,"ip":["10.46.2.112","fe80::2959:f9cc:2a94:6ddc","192.168.122.1"],"name":"localhost.localdomain","mac":["00:0c:29:4e:57:2e","52:54:00:56:ed:eb","52:54:00:56:ed:eb"],"hostname":"localhost.localdomain","architecture":"x86_64","os":{"family":"redhat","name":"CentOS Linux","kernel":"3.10.0-1062.el7.x86_64","codename":"Core","platform":"centos","version":"7 (Core)"},"id":"17946cedccdd442b845d0cfa8693cc71"},"agent":{"ephemeral_id":"3a381097-c3fe-4339-b92b-fff537b9a9f2","id":"401bee7f-115f-447d-a1e5-a6b6c57e21a1","name":"localhost.localdomain","type":"filebeat","version":"7.8.1","hostname":"localhost.localdomain"},"message":"[2020-07-29 22:32:49,646] INFO [GroupMetadataManager brokerId=0] Removed 0 expired offsets in 1 milliseconds. (kafka.coordinator.group.GroupMetadataManager)","log":{"offset":1161,"file":{"path":"/yw/log/1.log"}},"input":{"type":"log"},"ecs":{"version":"1.5.0"}}
{"@timestamp":"2020-07-30T02:43:17.330Z","@metadata":{"beat":"filebeat","type":"_doc","version":"7.8.1"},"host":{"id":"17946cedccdd442b845d0cfa8693cc71","name":"localhost.localdomain","containerized":false,"ip":["10.46.2.112","fe80::2959:f9cc:2a94:6ddc","192.168.122.1"],"mac":["00:0c:29:4e:57:2e","52:54:00:56:ed:eb","52:54:00:56:ed:eb"],"hostname":"localhost.localdomain","architecture":"x86_64","os":{"version":"7 (Core)","family":"redhat","name":"CentOS Linux","kernel":"3.10.0-1062.el7.x86_64","codename":"Core","platform":"centos"}},"agent":{"hostname":"localhost.localdomain","ephemeral_id":"3a381097-c3fe-4339-b92b-fff537b9a9f2","id":"401bee7f-115f-447d-a1e5-a6b6c57e21a1","name":"localhost.localdomain","type":"filebeat","version":"7.8.1"},"message":"[2020-07-29 22:42:49,646] INFO [GroupMetadataManager brokerId=0] Removed 0 expired offsets in 1 milliseconds. (kafka.coordinator.group.GroupMetadataManager)","log":{"offset":1318,"file":{"path":"/yw/log/1.log"}},"input":{"type":"log"},"ecs":{"version":"1.5.0"}}发现已经消费到了，格式为json，日志具体内容在message中

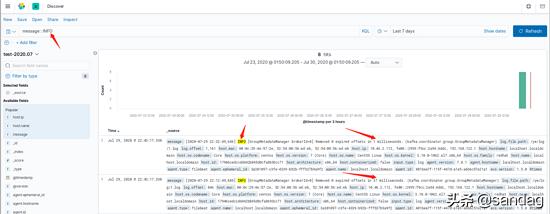

接下来看一下 es 中有没有数据，在Discover中，找到之前设置好的索引，我们搜索message中带有 INFO 级别的日志

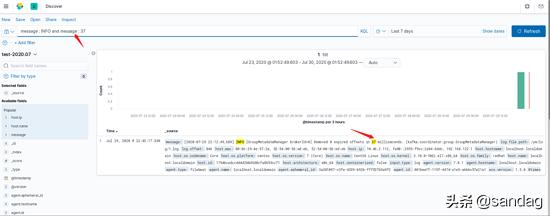

我们想在 INFO 日志中找到那条 37 milliseconds 数据， 只需要添加相关条件即可，如下图所示
至此，简单的一个示例以及完成了
