1. 前言

Apache Shiro是一个功能强大且易于使用的Java安全框架，提供了认证，授权，加密，和会话管理。

Shiro有三大核心组件：

Subject：即当前用户，在权限管理的应用程序里往往需要知道谁能够操作什么，谁拥有操作该程序的权利，shiro中则需要通过Subject来提供基础的当前用户信息，Subject 不仅仅代表某个用户，与当前应用交互的任何东西都是Subject，如网络爬虫等。所有的Subject都要绑定到SecurityManager上，与Subject的交互实际上是被转换为与SecurityManager的交互。

SecurityManager：即所有Subject的管理者，这是Shiro框架的核心组件，可以把他看做是一个Shiro框架的全局管理组件，用于调度各种Shiro框架的服务。作用类似于SpringMVC中的DispatcherServlet，用于拦截所有请求并进行处理。

Realm：Realm是用户的信息认证器和用户的权限人证器，我们需要自己来实现Realm来自定义的管理我们自己系统内部的权限规则。SecurityManager要验证用户，需要从Realm中获取用户。可以把Realm看做是数据源。

2. 数据库设计

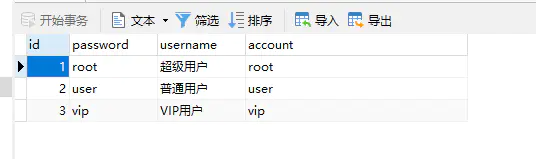

2.1 User(用户)

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user` (
`id` bigint(20) NOT AUTO_INCREMENT,
`password` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT ,
`username` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT ,
`account` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT ,
PRIMARY KEY (`id`) USING BTREE
) ENGINE = MyISAM AUTO_INCREMENT = 4 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of user
-- ----------------------------
INSERT INTO `user` VALUES (1, 'root', '超级用户', 'root');
INSERT INTO `user` VALUES (2, 'user', '普通用户', 'user');
INSERT INTO `user` VALUES (3, 'vip', 'VIP用户', 'vip');

SET FOREIGN_KEY_CHECKS = 1;

2.2 Role(角色)

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for role
-- ----------------------------
DROP TABLE IF EXISTS `role`;
CREATE TABLE `role` (
`id` int(11) NOT AUTO_INCREMENT,
`role` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT ,
`desc` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT ,
PRIMARY KEY (`id`) USING BTREE
) ENGINE = MyISAM AUTO_INCREMENT = 4 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of role
-- ----------------------------
INSERT INTO `role` VALUES (1, 'admin', '超级管理员');
INSERT INTO `role` VALUES (2, 'user', '普通用户');
INSERT INTO `role` VALUES (3, 'vip_user', 'VIP用户');

SET FOREIGN_KEY_CHECKS = 1;

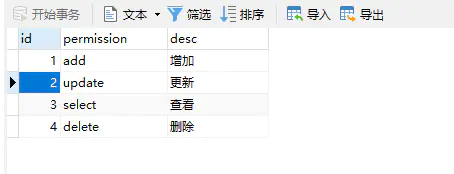

2.3 Permission(权限)

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for permission
-- ----------------------------
DROP TABLE IF EXISTS `permission`;
CREATE TABLE `permission` (
`id` int(11) NOT AUTO_INCREMENT,
`permission` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT COMMENT '权限名称',
`desc` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT COMMENT '权限描述',
PRIMARY KEY (`id`) USING BTREE
) ENGINE = MyISAM AUTO_INCREMENT = 5 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of permission
-- ----------------------------
INSERT INTO `permission` VALUES (1, 'add', '增加');
INSERT INTO `permission` VALUES (2, 'update', '更新');
INSERT INTO `permission` VALUES (3, 'select', '查看');
INSERT INTO `permission` VALUES (4, 'delete', '删除');

SET FOREIGN_KEY_CHECKS = 1;

2.4 User_Role(用户-角色)

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for user_role
-- ----------------------------
DROP TABLE IF EXISTS `user_role`;
CREATE TABLE `user_role` (
`id` int(11) NOT AUTO_INCREMENT,
`user_id` int(11) DEFAULT ,
`role_id` int(11) DEFAULT ,
PRIMARY KEY (`id`) USING BTREE
) ENGINE = MyISAM AUTO_INCREMENT = 4 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Fixed;

-- ----------------------------
-- Records of user_role
-- ----------------------------
INSERT INTO `user_role` VALUES (1, 1, 1);
INSERT INTO `user_role` VALUES (2, 2, 2);
INSERT INTO `user_role` VALUES (3, 3, 3);

SET FOREIGN_KEY_CHECKS = 1;

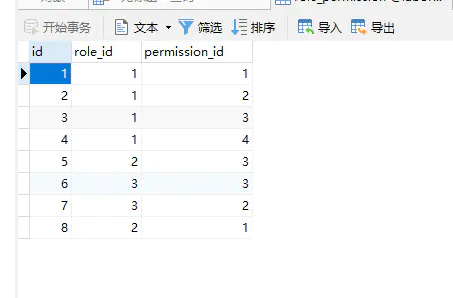

2.5 Role_Permission(角色-权限)

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for role_permission
-- ----------------------------
DROP TABLE IF EXISTS `role_permission`;
CREATE TABLE `role_permission` (
`id` int(11) NOT AUTO_INCREMENT,
`role_id` int(11) DEFAULT ,
`permission_id` int(255) DEFAULT ,
PRIMARY KEY (`id`) USING BTREE
) ENGINE = MyISAM AUTO_INCREMENT = 9 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Fixed;

-- ----------------------------
-- Records of role_permission
-- ----------------------------
INSERT INTO `role_permission` VALUES (1, 1, 1);
INSERT INTO `role_permission` VALUES (2, 1, 2);
INSERT INTO `role_permission` VALUES (3, 1, 3);
INSERT INTO `role_permission` VALUES (4, 1, 4);
INSERT INTO `role_permission` VALUES (5, 2, 3);
INSERT INTO `role_permission` VALUES (6, 3, 3);
INSERT INTO `role_permission` VALUES (7, 3, 2);
INSERT INTO `role_permission` VALUES (8, 2, 1);

SET FOREIGN_KEY_CHECKS = 1;

3. 项目结构

4. 前期准备

4.1 导入Pom

<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>

<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
</dependency>

<dependency>
<groupId>org.mybatis.spring.boot</groupId>
<artifactId>mybatis-spring-boot-starter</artifactId>
<version>1.3.2</version>
</dependency>

<dependency>
<groupId>org.apache.shiro</groupId>
<artifactId>shiro-spring</artifactId>
<version>1.4.0</version>
</dependency>

4.2 application.yml

server:
port: 8903
spring:
application:
name: lab-user
datasource:
driver-class-name: com.mysql.jdbc.Driver
url: jdbc:mysql://127.0.0.1:3306/laboratory?charset=utf8
username: root
password: root
mybatis:
type-aliases-package: cn.ntshare.laboratory.entity
mapper-locations: classpath:mapper/*.xml
configuration:
map-underscore-to-camel-case: true

4.3 实体类

4.3.1 User.java

@Data
@ToString
publicclassUserimplementsSerializable{

private static final long serialVersionUID = -6056125703075132981L;

private Integer id;

private String account;

private String password;

private String username;
}

4.3.2 Role.java

@Data
@ToString
publicclassRoleimplementsSerializable{

private static final long serialVersionUID = -1767327914553823741L;

private Integer id;

private String role;

private String desc;
}

4.4 Dao层

4.4.1 PermissionMapper.java

@Mapper
@Repository
public interface PermissionMapper {

List<String> findByRoleId(@Param("roleIds") List<Integer> roleIds);
}

4.4.2 PermissionMapper.xml

<mapper namespace="cn.ntshare.laboratory.dao.PermissionMapper">
<sql id="base_column_list">
id, permission, desc
</sql>

<select id="findByRoleId" parameterType="List" resultType="String">
select permission
from permission, role_permission rp
where rp.permission_id = permission.id and rp.role_id in
<foreach collection="roleIds" item="id" open="(" close=")" separator=",">
#{id}
</foreach>
</select>
</mapper>

4.4.3 RoleMapper.java

@Mapper
@Repository
public interface RoleMapper {

List<Role> findRoleByUserId(@Param("userId") Integer userId);
}

4.4.4 RoleMapper.xml

<mapper namespace="cn.ntshare.laboratory.dao.RoleMapper">
<sql id="base_column_list">
id, user_id, role_id
</sql>

<select id="findRoleByUserId" parameterType="Integer" resultType="Role">
select role.id, role
from role, user, user_role ur
where role.id = ur.role_id and ur.user_id = user.id and user.id = #{userId}
</select>
</mapper>

4.4.5 UserMapper.java

@Mapper
@Repository
public interface UserMapper {
User findByAccount(@Param("account") String account);
}

4.4.6 UserMapper.xml

<mapper namespace="cn.ntshare.laboratory.dao.UserMapper">

<sql id="base_column_list">
id, account, password, username
</sql>

<select id="findByAccount" parameterType="Map" resultType="User">
select
<include refid="base_column_list"/>
from user
where account = #{account}
</select>
</mapper>

4.5 Service层

4.5.1 PermissionServiceImpl.java

@Service
publicclassPermissionServiceImplimplementsPermissionService{

@Autowired
private PermissionMapper permissionMapper;

@Override
public List<String> findByRoleId(List<Integer> roleIds) {
return permissionMapper.findByRoleId(roleIds);
}
}

4.5.2 RoleServiceImpl.java

@Service
publicclassRoleServiceImplimplementsRoleService{

@Autowired
private RoleMapper roleMapper;

@Override
public List<Role> findRoleByUserId(Integer id) {
return roleMapper.findRoleByUserId(id);
}
}

4.5.3 UserServiceImpl.java

@Service
publicclassUserServiceImplimplementsUserService{

@Autowired
private UserMapper userMapper;

@Override
public User findByAccount(String account) {
return userMapper.findByAccount(account);
}
}

4.6. 系统返回状态枚举与包装函数

4.6.1 ServerResponseEnum.java

@AllArgsConstructor
@Getter
public enum ServerResponseEnum {
SUCCESS(0, "成功"),
ERROR(10, "失败"),

ACCOUNT_NOT_EXIST(11, "账号不存在"),
DUPLICATE_ACCOUNT(12, "账号重复"),
ACCOUNT_IS_DISABLED(13, "账号被禁用"),
INCORRECT_CREDENTIALS(14, "账号或密码错误"),
NOT_LOGIN_IN(15, "账号未登录"),
UNAUTHORIZED(16, "没有权限")
;
Integer code;
String message;
}

4.6.2 ServerResponseVO.java

@Getter
@Setter
@NoArgsConstructor
public class ServerResponseVO<T> implements Serializable {
private static final long serialVersionUID = -1005863670741860901L;
// 响应码
private Integer code;

// 描述信息
private String message;

// 响应内容
private T data;

privateServerResponseVO(ServerResponseEnum responseCode) {
this.code = responseCode.getCode;
this.message = responseCode.getMessage;
}

privateServerResponseVO(ServerResponseEnum responseCode, T data) {
this.code = responseCode.getCode;
this.message = responseCode.getMessage;
this.data = data;
}

privateServerResponseVO(Integer code, String message) {
this.code = code;
this.message = message;
}

/**
* 返回成功信息
* @param data 信息内容
* @param <T>
* @return
*/
public static<T> ServerResponseVO success(T data) {
return new ServerResponseVO<>(ServerResponseEnum.SUCCESS, data);
}

/**
* 返回成功信息
* @return
*/
public static ServerResponseVO success {
return new ServerResponseVO(ServerResponseEnum.SUCCESS);
}

/**
* 返回错误信息
* @param responseCode 响应码
* @return
*/
public static ServerResponseVO error(ServerResponseEnum responseCode) {
return new ServerResponseVO(responseCode);
}
}

4.7 统一异常处理

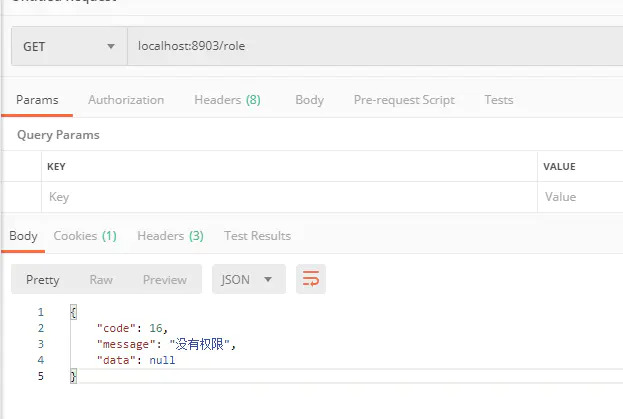

当用户身份认证失败时，会抛出UnauthorizedException，我们可以通过统一异常处理来处理该异常

@RestControllerAdvice
public class UserExceptionHandler {

@ExceptionHandler(UnauthorizedException.class)
@ResponseStatus(HttpStatus.UNAUTHORIZED)
public ServerResponseVO UnAuthorizedExceptionHandler(UnauthorizedException e) {
return ServerResponseVO.error(ServerResponseEnum.UNAUTHORIZED);
}
}

5. 集成Shiro

5.1 UserRealm.java

/**
* 负责认证用户身份和对用户进行授权
*/
publicclassUserRealmextendsAuthorizingRealm{

@Autowired
private UserService userService;

@Autowired
private RoleService roleService;

@Autowired
private PermissionService permissionService;

// 用户授权
protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) {
User user = (User) principalCollection.getPrimaryPrincipal;
SimpleAuthorizationInfo authorizationInfo = new SimpleAuthorizationInfo;
List<Role> roleList = roleService.findRoleByUserId(user.getId);
Set<String> roleSet = new HashSet<>;
List<Integer> roleIds = new ArrayList<>;
for (Role role : roleList) {
roleSet.add(role.getRole);
roleIds.add(role.getId);
}
// 放入角色信息
authorizationInfo.setRoles(roleSet);
// 放入权限信息
List<String> permissionList = permissionService.findByRoleId(roleIds);
authorizationInfo.setStringPermissions(new HashSet<>(permissionList));

return authorizationInfo;
}

// 用户认证
protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken authToken) throws AuthenticationException {
UsernamePasswordToken token = (UsernamePasswordToken) authToken;
User user = userService.findByAccount(token.getUsername);
if (user == ) {
return ;
}
return new SimpleAuthenticationInfo(user, user.getPassword, getName);
}
}

5.2 ShiroConfig.java

@Configuration
publicclassShiroConfig{

@Bean
public UserRealm userRealm {
return new UserRealm;
}

@Bean
public DefaultWebSecurityManager securityManager {
DefaultWebSecurityManager securityManager = new DefaultWebSecurityManager;
securityManager.setRealm(userRealm);
return securityManager;
}

/**
* 路径过滤规则
* @return
*/
@Bean
public ShiroFilterFactoryBean shiroFilter(DefaultWebSecurityManager securityManager) {
ShiroFilterFactoryBean shiroFilterFactoryBean = new ShiroFilterFactoryBean;
shiroFilterFactoryBean.setSecurityManager(securityManager);

shiroFilterFactoryBean.setLoginUrl("/login");
shiroFilterFactoryBean.setSuccessUrl("/");
Map<String, String> map = new LinkedHashMap<>;
// 有先后顺序
map.put("/login", "anon"); // 允许匿名访问
map.put("/**", "authc"); // 进行身份认证后才能访问
shiroFilterFactoryBean.setFilterChainDefinitionMap(map);
return shiroFilterFactoryBean;
}

/**
* 开启Shiro注解模式，可以在Controller中的方法上添加注解
* @param securityManager
* @return
*/
@Bean
public AuthorizationAttributeSourceAdvisor authorizationAttributeSourceAdvisor(@Qualifier("securityManager") DefaultSecurityManager securityManager) {
AuthorizationAttributeSourceAdvisor authorizationAttributeSourceAdvisor = new AuthorizationAttributeSourceAdvisor;
authorizationAttributeSourceAdvisor.setSecurityManager(securityManager);
return authorizationAttributeSourceAdvisor;
}

5.3 LoginController.java

@RestController
@RequestMapping("")
public class LoginController {

@PostMapping("/login")
public ServerResponseVO login(@RequestParam(value = "account") String account,
@RequestParam(value = "password") String password) {
Subject userSubject = SecurityUtils.getSubject;
UsernamePasswordToken token = new UsernamePasswordToken(account, password);
try {
// 登录验证
userSubject.login(token);
return ServerResponseVO.success;
} catch (UnknownAccountException e) {
return ServerResponseVO.error(ServerResponseEnum.ACCOUNT_NOT_EXIST);
} catch (DisabledAccountException e) {
return ServerResponseVO.error(ServerResponseEnum.ACCOUNT_IS_DISABLED);
} catch (IncorrectCredentialsException e) {
return ServerResponseVO.error(ServerResponseEnum.INCORRECT_CREDENTIALS);
} catch (Throwable e) {
e.printStackTrace;
return ServerResponseVO.error(ServerResponseEnum.ERROR);
}
}

@GetMapping("/login")
public ServerResponseVO login {
return ServerResponseVO.error(ServerResponseEnum.NOT_LOGIN_IN);
}

@GetMapping("/auth")
public String auth {
return "已成功登录";
}

@GetMapping("/role")
@RequiresRoles("vip")
public String role {
return "测试Vip角色";
}

@GetMapping("/permission")
@RequiresPermissions(value = {"add", "update"}, logical = Logical.AND)
public String permission {
return "测试Add和Update权限";
}
}

6. 测试

6.1 用root用户登录

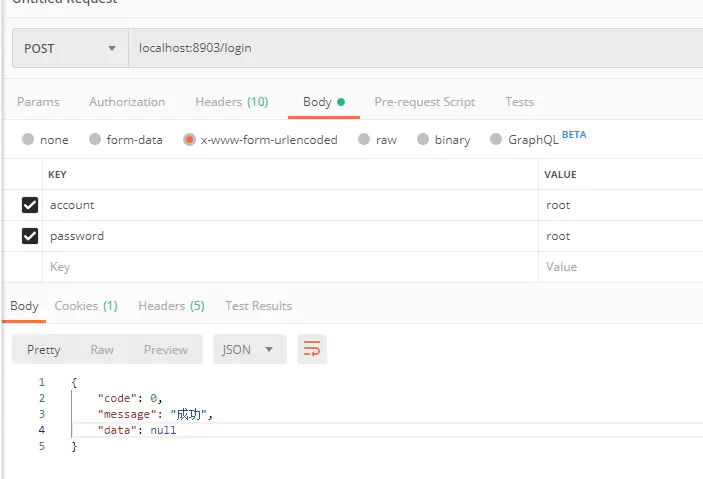

6.1.1 登录

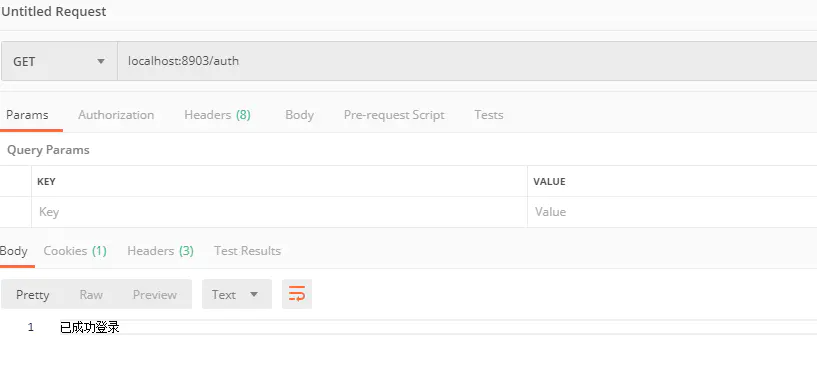

6.1.2 验证是否登录

6.1.3 测试角色权限

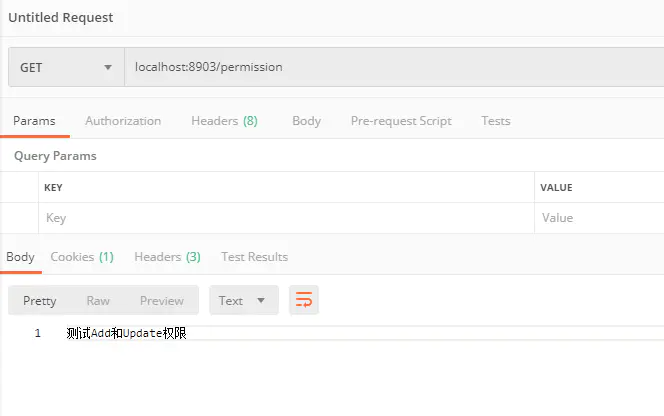

6.1.4 测试用户操作权限

7. 总结

本文演示了 Spring Boot 极简集成 Shiro 框架，实现了基础的身份认证和授权功能，如有不足，请多指教。

后续可扩展的功能点有：

1. 集成 Redis 实现 Shiro 的分布式会话

2. 集成 JWT 实现单点登录功能

Spring Boot 极简集成 Shiro
